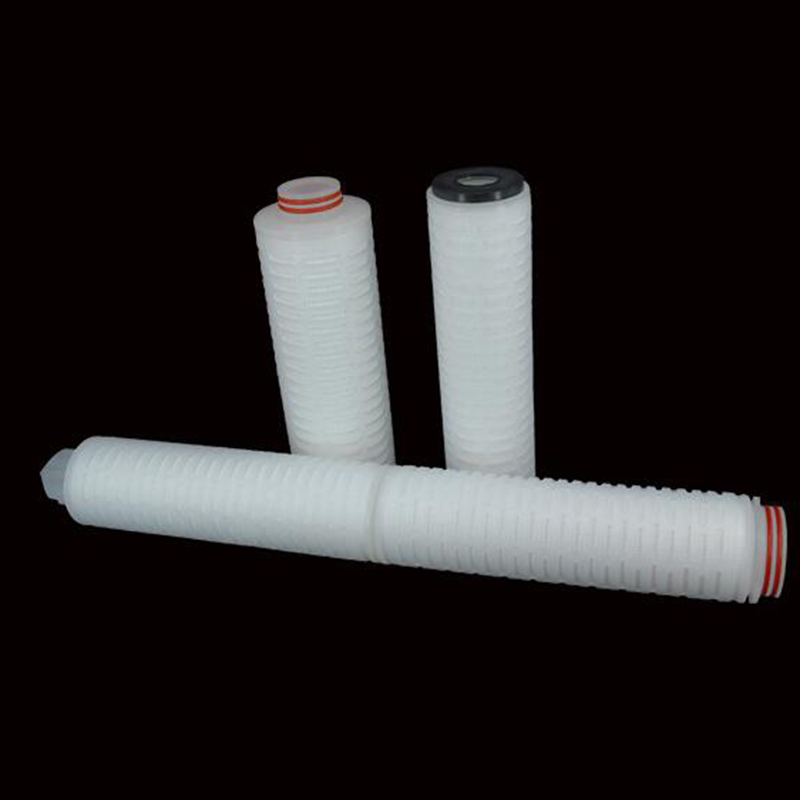

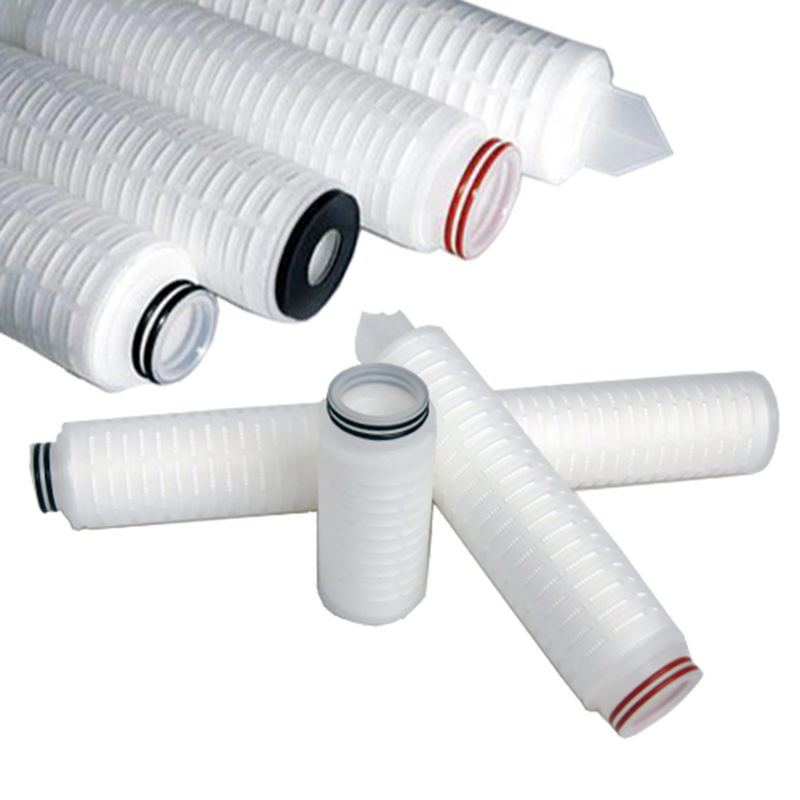

I-PVDF icoca icartridge
Inkcazo emfutshane:
Iikhatriji ze-YCF zenziwe nge-hydrophilic polyvinylidene fluoride PVDF membrane, umbandela unentsebenzo elungileyo yokumelana nobushushu kwaye unokusetyenziswa ixesha elide kwi-80 ° C-90 ° C. I-PVDF ineprotein ephantsi yokusebenza kwe-adsorption kwaye kufanelekile kwisisombululo sezondlo, iiarhente zebhayoloji, ukuhluza izitofu ezingenazintsholongwane. Kwangelo xesha, inendawo yokusebenza kwezulu ephantsi kunye nokuhambelana kwemichiza kwindalo yonke.
Iikhatriji ze-YCF zenziwe nge-hydrophilic polyvinylidene fluoride PVDF membrane, umbandela unentsebenzo elungileyo yokumelana nobushushu kwaye unokusetyenziswa ixesha elide kwi-80 ° C-90 ° C. I-PVDF ineprotein ephantsi yokusebenza kwe-adsorption kwaye kufanelekile kwisisombululo sezondlo, iiarhente zebhayoloji, ukuhluza izitofu ezingenazintsholongwane. Kwangelo xesha, inendawo yokusebenza kwezulu ephantsi kunye nokuhambelana kwemichiza kwindalo yonke.
Ezona mpawu
Iqondo eliphantsi kakhulu lokufakwa kwiprotein, elisebenza kwiimveliso zebhayiloji yegazi;
Resistance nokumelana, ukumelana lobushushu eliphezulu, ukumelana igcwala, kunye imichiza elungileyo ukulungelelanisa;
◇ Ukupasa uvavanyo lwe-100% lokuthembeka, ngamanzi ahlambulukileyo aphezulu, akukho fayibha yokuphalaza;
Ip Imvula ephantsi;
Isicelo esiqhelekileyo
St Ukuzala inzalo kweprotein ephezulu yeeVecins, imveliso yebhayoloji kunye negazi;
◇ Ukucoca iziyobisi ngobuninzi;
◇ Inomchiza wokucoca inzalo kwimicimbi eshukumayo.
Ukuhluza okuphakathi;
Ukucoca ulwelo lobushushu obuphezulu;
Ingcaciso ephambili
Inqanaba lokususa: 0.2, 0.45, 1.0, 3.0, 5.0 (iyunithi: um)
Indawo esebenzayo yeefilitha: ulayisho olunye -0.6 / 10 ”
Ububanzi obungaphandle: 69mm, 83mm, 130mm
Ukuqinisekisa umgangatho
◇ Endotoxin: <0.25EU / ml
Filtrate: <0.03g / 10 ”iCartridge
Iyanyamezeleka ekuphindaphindeni kwenzalo yomphunga (ngaphezulu kwamaxesha e-50) kwimeko yokungalayishwa
Izinto zokwakha
Medium Isixhobo sokucoca: Hydrophilic PVDF
Inkxaso / umsele: PP
◇ Core kunye nendlwana: PP
-O-amakhonkco: jonga uluhlu lweekhatriji
◇ Indlela yokutywina: ukunyibilika
Imiqathango yokuSebenza
Ubushushu obuphezulu bokusebenza: ≤90 ° C
◇ Ukucoca inzalo: 121 ° C 30min / ixesha
Difference Umahluko wokusebenza koxinzelelo oluphezulu: 0.42Mpa / 25 ° C
Uku-odola ulwazi
YCF- □ - ◎ - ◇ - ○ - ☆ - △
|
□ |
○ |
☆ |
|
△ |
||||||
|
Hayi. |
Ukalisho lokususa (μm) |
Hayi. |
Ubude |
Hayi. |
Ukuphelisa iminqwazi |
Hayi. |
O-amakhonkco izinto |
|||
|
002 |
0.2 |
5 |
5 ” |
A |
215 / iflethi |
S |
Irabha abicah |
|||
|
004 |
0.45 |
1 |
10 ” |
B |
Zombini iziphelo zithe tyaba / zombini iziphelo zidlula |
E |
EPDM |
|||
|
006 |
0.65 |
2 |
20 ” |
F |
Zombini iziphelo zithe tyaba / isiphelo esinye sitywinwe |
B |
I-NBR |
|||
|
010 |
1.0 |
3 |
30 ” |
H |
Iringi yangaphakathi / iflethi |
V |
Irabha yeFluorine |
|||
|
020 |
2.0 |
4 |
40 ” |
J |
I-liner / iflethi yentsimbi engenasici |
F |
Isongelwe ngerabha yefluorine |
|||
|
030 |
3.0 |
|
|
K |
I-liner ye-222 yentsimbi engenasici |
|
|
|||
|
050 |
5.0 |
|
|
M |
222 / iflethi |
|
|
|||
|
100 |
10 |
|
|
P |
222 / iphelile |
|
|
|||
|
|
|
|
|
Q |
226 / iphelile |
|
|
|||
|
|
|
|
|
O |
226 / iflethi |
|
|
|||
|
|
|
|
|
R |
I-liner / i-fin yentsimbi engenasici |
|
|
|||
|
|
|
|
|
W |
I-liner / iflethi yentsimbi engenasici |
|
||||
